Carodoor®

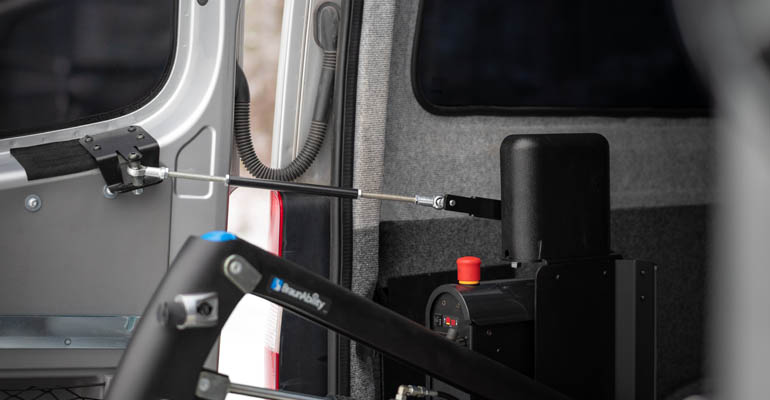

Carodoor® is an automatic door opener for rear doors. Its intended use is in combination with our wheelchair lifts. When using the Carodoor® it's connected so that it works in unison with the wheelchair lift. In other words, you can control everything from a single remote. The doors will open before the lift comes out and they will close again once the lift stows.
Remote Control
To control the Carodoor® we offer two remote control options. Either the standard RF remote or our own Remote App. The latter is a simple and intuitive Bluetooth receiver that connects with a smartphone app. Both remotes work with Carodoor in combination with any of our wheelchair lifts.
Mounting brackets
The Carodoor® is compatible with a number of our wheelchair lifts, including all of our premium Q-Series as well as the latest E-Series lifts.
To simplify the installation process the Carodoor® comes with lift specific mounting brackets. In most cases, these brackets make use of existing holes in the lift. In other words very little drilling is required when installing the mounting brackets.
Furthermore, the optional universal door bracket can be made to fit most vehicle doors.
Weights
| Motor package | 10 kg |
| Q-Series brackets | 6.2 kg |
| E-Series brackets | 11 kg |
| Non EK-lifts brackets | 12 kg |
| EK-lifts brackets | 14 kg |
Power
| Voltage | 12 V |
| Max current | 15 A |
| Max current - sleep mode | 0 mA |
Added width with Carodoor
| Q-Series | < 100 mm |
| E-Series | < 90 mm |
| Non EK-lifts | < 115 mm |
| EK-lifts brackets | < 115 mm |
Added width depends on the ball joint and the application.
BraunAbility Remote
| Max current - sleep mode | 2.5 mA |
Remote kit
| Max current - sleep mode | 30 mA |
