U-Seat
The U-Seat is a cost effective and versatile seat.
Available in two versions, a discreet standard version in all black and a public version with highly visible details.

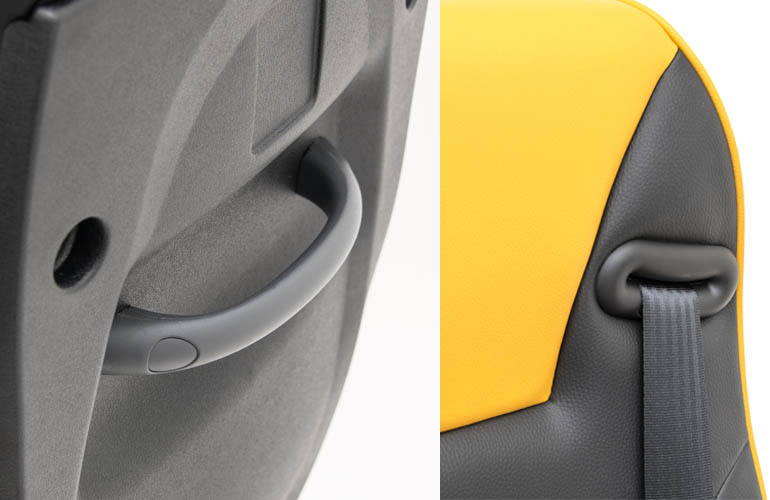

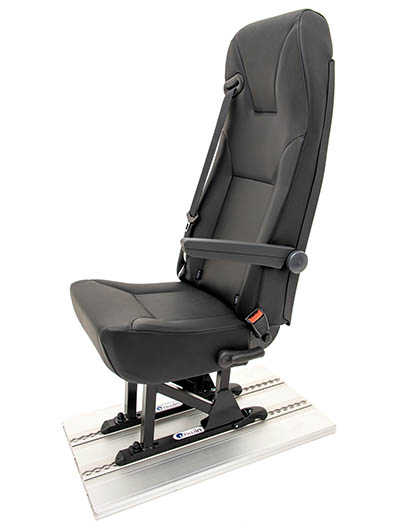

The standard U-Seat has two upholstery options, either a black leatherette/cloth combination or a full black leatherette. Both options have a back shell in ABS plastic. A handle is located at the back of the headrest. The backrest is available as fixed or reclineable. Armrests are available as an option.
The U-Seat standard version has ISOFIX anchor points for child safety seats as well as an integrated 3-point seatbelt.

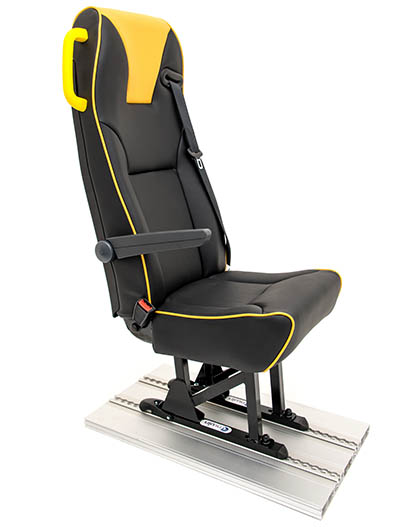

The public version shares the full leatherette upholstery, back shell and handle at the back of the headrest as the standard version. It also has the same armrest and recline options.
What separates the public version from the standard version is the yellow piping around the contours of the seat, the additional yellow handle on the side of the headrest and a highly visible yellow headrest.
The U-Seat public version has ISOFIX anchor points for child safety seats as well as an integrated 3-point seatbelt.
The U-Seat is designed to stay nice and clean even after years of heavy usage. The leatherette upholstery is durable and will not absorb liquids. The back ABS shell provides good protection from scuffs and marks. Both materials can be easily wiped cleaned with a wet cloth.

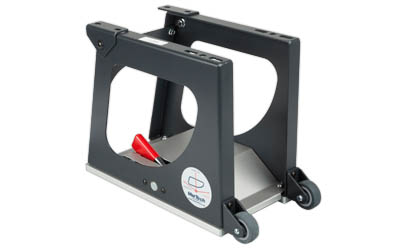

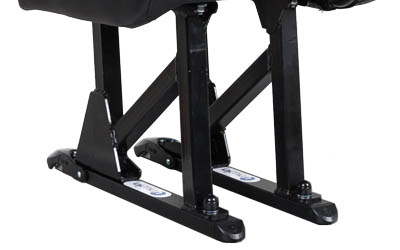

To provide optimal flexibility in cost and seating layout the U-Seat can be combined with both our TwinLock seat legs and our standard legs. In turn the standard seat legs can be used with our foot operated Unwin Seat Locker.

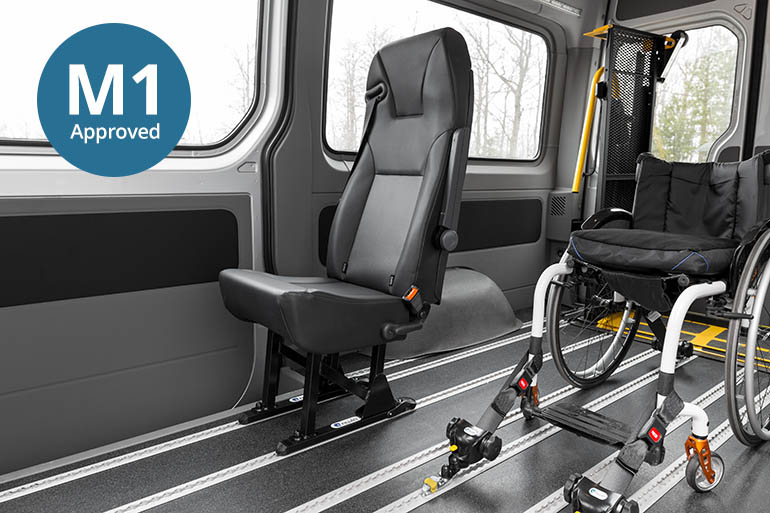

To ensure a high level of safety the U-Seat comes fully tested and approved to M1 standard. Each of the individual functions adheres to its specific current directives for homologation.
In short, the U-Seat is a safe bet in any tender.
Homologation directives
| 2005/39/CE Seats, their anchorages and head restraints |
|
| 2005/40/CE Safety belts and restraint systems of motor vehicles |
|
| 2005/41/CE Anchorages for motor-vehicle safety belts |
|
| ISOFIX ISO/F2 Anchorages for child seats |
Specifications
| Width (incl. armrest) | 455 mm |
| Height | 868 mm |
| Depth | 655 mm |
| Weight | 16 / 19 kg |
| Backrest recline | 0-19.5° |
